SPECIFICATIONS: MADE FOR INDIA
| Automation Grade | Automatic |
| Material | Mild Steel |
| Surface Treatment | Color Coated |

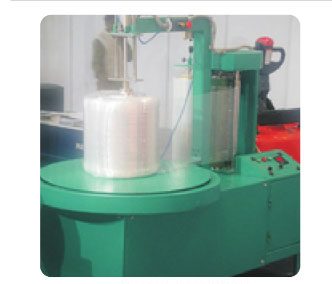

Box Stretch Wrapping Machine could be used for wrapping single cargo or some small cargos combined. Pneumatic top plate ensures it calm and safety packing. The packing height, fixed film carriage or up-down film carriage can be chosen according to customers request.
Control system:
- PLC
- 0-3 top(bottom ) & up-down Wrap times choose
- Cycle pause capability
- Height Sensing Adjustable limit block to active top limiting switch
- Rotating platform speed 3-20RPM adjustable by frequency changer
- Pneumatic top plate, clamp, and safety
Film carriage:
- Power pre-stretch up to 250%
- Film delivery variable speed by separate DC Motor
- Film dancer-bar with variable speed output
- Film carriage drive Film carriage can up-down to suit different height product
- Heavy duty chain lift, film carriage up and down is calm and safety
Specifications:
| Model | Model-MP350BW | Model-MP600BW |
| Max Wrapping Size(LXWXH) (Max)(mm) | 600 x 600 x 350 | 600 x 600 x 600 |
| Wrapping Efficiency(loads/hour) | 20 ~ 40 | 20 ~ 40 |
| Turntable Speed(rpm/min) | 3~18 | 3~20 |
| Turntable Diameter(mm) | H:600 | H:600 |
| Turntable Loading (max)(kg) | 50 | 50 |
| Electrical requirement ( V/Hz) | 220 / 50 | 220 / 50 |
| Power (kw) | 0.55 | Turntable : 0.75 Film, Carriage :0.4; Steel Tower : 0.37 |
| Film Carriage | Friction Brake Type | Pre-Stretch Type |
| Control System | PCB | PLC |
| Top Plate Device | Pneumatic Type Top Plate | Pneumatic Type Top Plate |
| Weight (kg) | 260 kg | 260 kg |
| Machine Dimension (mm) | 600 x 4170 x 1800 | 600 x 4170 x 1800 |
