SPECIFICATIONS: MADE FOR INDIA
| Control System | PLC |
| Film Carriage | Pre-Stretch Type |
| Model | MP2000SW |
| Turntable Diameter | D-1650 / H-85 mm |
| Turntable Loading | 2000 max kg |
| Electrical Requirement | 220 / 50 V/Hz |
| Power | Turntable:0.75 kW Film, Carriage:0.4 kW, Steel Tower:0.37 kW |
| Top Plate Device | Pneumatic Direct Transmit, Orbit Top Plate |
| Weight | 800 kg |
| Machine Dimension | L Type-2745 x 1650 x 2700 /H Type-2745 x 1650 x 3300 mm |
| Max Wrapping Size | (500 -1200) x ( 500 -1200) (LXWXH) Max mm |
| Wrapping Efficiency | 20 – 40 loads/hour |
| Turntable Speed | 3-12 rpm |

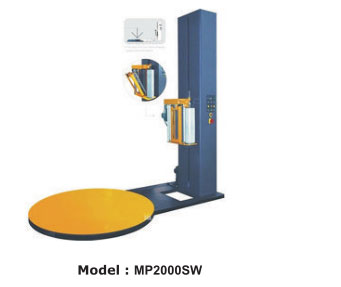

MP2000SW, Pallet Stretch Wrapping Machine are designed to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storage to protect them from tip, spill or from being damaged. The wrapping type and times can be designed according to customers’ requirements. The ramp is optional.
Control system:
- PLC
- Photo-eye pallet height sensor
- Reinforce wrap allow more wrap on same location
- Over-wrap provide more wrap over the top of loads
- Powered pre-stretch film carriage up to 300%
- Film delivery variable speed by separate AC Drive Motor & Separate inverter
Turntable & Film carriage:
- Heavy duty double-chain carriage lift, calm and safety
- Carriage door opens for effortless roll change and thread film
- Film dancer-bar control film output
- Safety stop to avoid foot crush
- Hinged mast for easy handling
- Front & rear Forklift transportable
