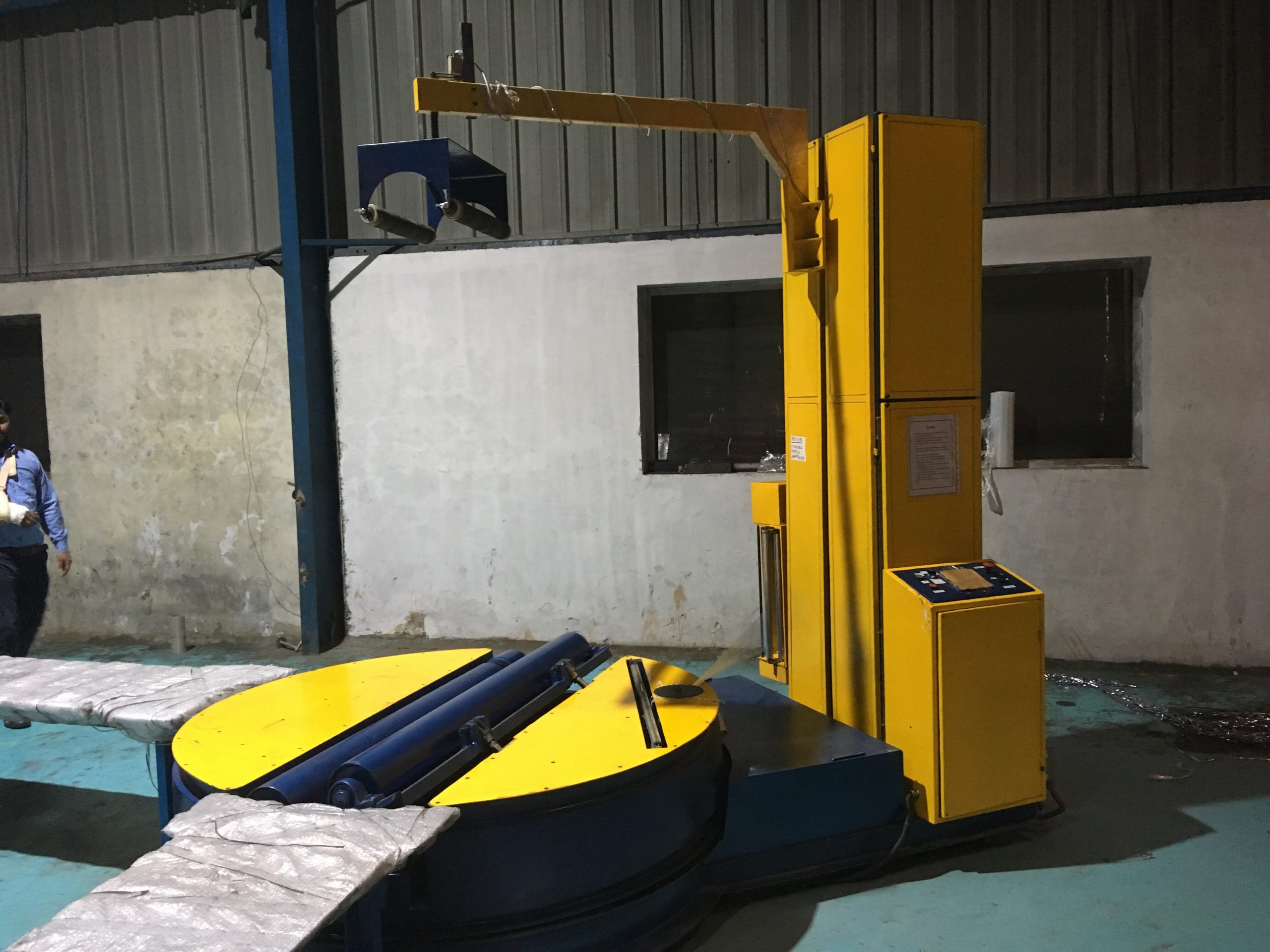

REEL WRAPPING MACHINE
We offer SPRW 500 Reel stretch wrapping machine. It is used for stretch film wrapping around paper rolls, coil, non-woven, rubber product and other similar kind of products manufactured in small reels. This machine is reduces the labour work by automating the process of detaching, attaching and pressing the film. To wrap the product, operator has to place the item on a turn-table and turn-on the machine to operate. To form a cocoon type packing this packing method is used. This machine provides moisture water & dust proof packing.
| MODEL | REEL STRETCH WRAPPER SPRW-500 |
| Max. Wrapping Size (L×W×H)(Max)(mm) | 600×500 |
| Wrapping Efficiency(loads/hour) | 20-40 |
| Turntable Speed(rpm/min) | 0-12 |
| Turntable Diameter(mm) | 70 |
| Turntable Loading(max)(kg) | 60 |
| Electrical Requirement | Single Phase() 220V/50HZ |
| Power(kw) | 0.8 |
| Film Carriage | Friction Brake Type |
| Control System | PCB |
| Top Plate Device | NIL |
| Machine Weight(kg) | 150 |
| Machine Dimension(mm) | 1460×840×1492 |
